Question 1

What are bale ties used for?

Accepted Answer

Bale ties are used in the recycling and waste management industries to secure bales of recyclable material, making the loading and transportation of these materials easier and more efficient.
                    They are essential for organizing, storing, and preparing scrap materials for recycling. Bale ties come in single loop and double loop configurations and with different coatings.
                    They are used with both vertical and horizontal balers to secure bales of recycled material after it has gone through the baler. Common materials bundled by bale ties include plastic, paper, cardboard, metal, and clothing.

Question 2

What is the difference between double loop and single loop bale ties?

Accepted Answer

Bale ties come in both single loop and double loop. Here are the key distinctions:
                    Number of loops: Single loop bale ties have a single, preformed loop on one end
                    Double loop bale ties have two loops, one at each end of the wire
                    Binding method: Single loop ties are typically threaded through the bale and then twisted or fastened to secure the material Both loops of the double loop ties are threaded through the bale, and then each loop is secured separately to create a more secure bind
                    Strength:  Single loop bale ties are slightly less secure than double loop ties
                    Double loop ties have additional points of contact which enhances the overall strength and security of the bale tie

Question 3

Which wire is best for cardboard baling?

Accepted Answer

Generally, you&rsquo;ll want to use either an 11, 12, or 13 gauge wire for baling cardboard. Our 11-gauge wire is the thickest and, therefore, more suited to packing denser bales. It is important to consider your baler, however, as this will likely determine the type of wire that you&rsquo;ll need. This can differ between make and model, and there will likely be a user manual that will have the right info.
                    If not, you could always call the manufacturer and ask them directly. You wouldn&rsquo;t want to risk damaging your baler by using the wrong materials with it. For example, a smaller vertical baler that generates smaller bales may need a smaller gauge, like a 14. In contrast, a horizontal baler that operates at a larger scale may require an 11, even though you&rsquo;re baling the same material. Wire used for baling cardboard is usually very tough, no matter the gauge, so the main point to concern yourself with is whether or not your chosen type of wire is compatible with the machine you&rsquo;re using. It&rsquo;s worth noting that this can vary extensively, so make sure you find the right wire for your specific machine and the type of material you intend to bale.

Question 4

How strong should baling wire be?

Accepted Answer

The tensile strength required for baling wire can vary greatly depending on the application and the type of material being baled. Here are some examples of different baling wire applications and the tensile strength required:  Recycling and waste management: in these industries, baling wire is used to securely contain bales of waste and recycled materials during transportation and storage. Black annealed wire, which has a tensile strength in the range of 65,000&ndash;78,000 psi, is commonly used for this purpose.
                    Agricultural operations: vineyards, farms and ranches use our baling wire for fencing, trellises and tree supports, and hay baling. Generally, our galvanized wire is the preferred choice for these applications. Its tensile strength is in the 65,000&ndash;78,000 psi range.
                    Packaging industry: in the packaging industry, baling wire is often used to bind multiple boxes into a single shipment. The wire's flexibility enables it to hold distinct shapes when tied. The tensile strength required would depend on the weight and size of the boxes being bound together, but would generally fall within the range of the tensile strength of black annealed wire.
                     Our 11 gauge hi-tensile carrier wire has a tensile strength of 145,000&ndash;175,000 psi, enabling users to take on extreme load sizes in their baler and secure much larger bundles. While tensile strength is a critical factor, other factors such as the wire's gauge, elongation, and resistance to corrosion can also affect its performance.

Wire gauge	9 Gauge
Load strength	2,150 lbs.
Tensile strength	220,000 psi (1516.85 MPa)
Diameter (inch/mm)	SWG (.144" / 3.658 mm) \| Actual Size (.148" / 3.7592 mm)

Wire gauge	9 Gauge
Load strength	2,150 lbs.
Tensile strength	220,000 psi (1516.85 MPa)
Diameter (inch/mm)	Standard Wire Gauge or SWG (.144" / 3.658 mm) \| Actual Size (.148" / 3.7592 mm)
Elongation	4%
Carbon grade	1080
Ties per bundle	50, 62, 125
Custom lengths	120" - 234"
Quality control	Extensive testing
Finish	Bright (No Finish)

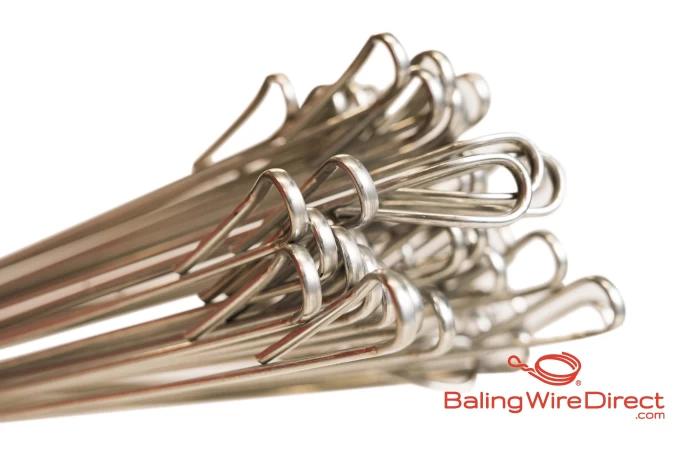

9 Gauge Bright Oval Double Loop Bale Ties

Product details

Product specifications

Double loop bale tie use cases

American wire products

Superior quality standards

Bright finished vs galvanized finished bale ties
